To read your Neptune T-10 water meter, first identify if it’s mechanical or electronic. For mechanical, read the odometer left to right for total volume and note the sweep hand for fractional units using the multiplier chart.
Electronic models display usage digitally and signal low flow with a flashing symbol. Check units—gallons or cubic feet—and observe any low flow indicators to detect leaks. Proper interpretation guarantees accurate water usage tracking.
For deeper understanding, explore detailed component and calibration info.
Key Takeaways
- Read the odometer digits from left to right to determine total water consumption on the Neptune T-10 meter register.
- Use the sweep hand to read fractional water usage by counting large and small ticks, then apply the correct multiplier.
- Check the register face for measurement units such as gallons, cubic feet, or cubic meters to interpret readings accurately.
- For electronic models, observe the digital LCD for precise readings and low flow indicators that signal minimal water movement.
- Confirm meter orientation and register type (mechanical or electronic) to ensure accurate reading and proper data interpretation.

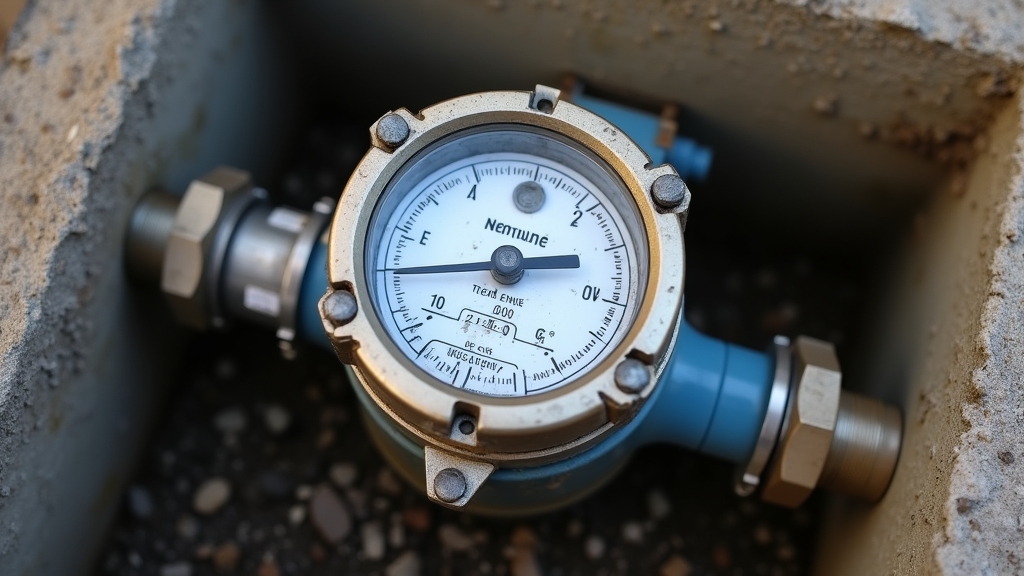

Overview of Neptune T-10 Water Meter Components
Although the Neptune T-10 water meter includes several components, you’ll primarily work with three major assemblies: the register, the lead-free high copper alloy maincase, and the nutating disc measuring chamber.
The register mounts in four positions, allowing flexible installation and easy reading. It also includes a direct read register for straightforward measurement access and is compatible with various flow rate monitoring systems.
The maincase, made from corrosion-resistant, lead-free bronze or high-copper alloy, withstands water pressure up to 150 psi and mechanical stress, ensuring durability.
The nutating disc measuring chamber employs a positive displacement mechanism made from proprietary synthetic polymer, delivering accurate readings regardless of meter orientation or piping stress.
This chamber uses a floating design and seals outlet ports to improve low-flow accuracy.
Each assembly and component is replaceable, facilitating maintenance and ensuring long-term reliability and performance. The meter is designed to meet or exceed the AWWA C700 Standard for accuracy and dependability.
Understanding the Register Display and Units
How do you accurately read and interpret the register display on a Neptune T-10 water meter?
First, identify the register type: mechanical or ProCoder electronic. Mechanical registers feature both a numeric odometer and a sweep hand. ProCoder uses LED absolute encoding for precise remote readings. The register orientation can be adjusted for convenience.
The Neptune 5/8” x 3/4” T-10 meter with ProCoder USG is encoded with a solid state absolute encoder ensuring high accuracy. Regular maintenance is essential to prevent issues such as mineral scale buildup that can affect meter accuracy.
Next, note the units displayed, which may be gallons, cubic feet, cubic meters, or imperial gallons, depending on your meter’s configuration. Each digit and the sweep hand correspond to specific multipliers based on meter size. For example, a 5/8″ meter’s odometer digits might represent 0.01 gallons, with the sweep hand completing one gallon per revolution.
Always consult Neptune’s multiplier tables to convert readings accurately and avoid errors in water usage interpretation. Proper sizing and compatibility with your water system ensure reliable and consistent meter performance.
Interpreting the Odometer and Sweep Hand Readings
When you read a Neptune T-10 water meter, start by noting the odometer digits to determine the main cumulative water usage. Then check the sweep hand for the fractional volume between whole units.
Using a 3-axis magnetometer sensor positioned correctly can help automate the detection of the rotating magnet inside the meter for precise digital readings. Proper installation and maintenance, similar to ensuring a check valve’s effectiveness in plumbing systems, can enhance long-term accuracy.
Read odometer digits left to right for total consumption, then interpret the sweep hand scale (0-9 large ticks plus smaller increments). Multiply the sweep hand position by its multiplier (e.g., 0.01) to calculate fractional usage.
Add this fraction to the odometer reading for precise flow measurement.
| Reading Element | Description | Example Value |
|---|---|---|
| Odometer Digits | Total whole units consumed | 001234 |
| Sweep Hand Scale | Fractional increments (0-9) | 7 large ticks |
| Sweep Hand Ticks | Smaller subdivisions between ticks | 4 small ticks |
| Multiplier | Fraction per tick | 0.01 units |
| Total Reading | Odometer + (ticks × multiplier) | 1234.074 units |
Identifying and Using the Low Flow Indicator
Hey there! So, let’s talk about the low flow indicator. You can usually find it as a small triangular dial right next to the main register face. It’s often colored red or black, making it super easy to spot.
Now, keep an eye on that indicator! It’s really helpful for catching any continuous or intermittent water movement that the main sweep hand might overlook. Monitoring such indicators is crucial because heat distribution systems affect how water flow impacts heating efficiency.
If you just take a moment to observe its motion over a two-minute stretch, you’ll be able to spot low flow conditions or even hidden leaks pretty effectively. This feature is part of the Neptune T-10’s design that ensures high-resolution, low flow leak detection.
Low Flow Indicator Location
Where can you find the low flow indicator on the Neptune T10 water meter? You’ll see it on the faceplate, integrated within the digital LCD display.
It sits at the upper right corner of the register screen, visible through the meter’s transparent cover. This indicator is an electronic symbol, not a physical moving part, and only lights up when activated.
Since the display cycles through screens, you may need to shine a flashlight on the meter’s light sensor to spot it. The low flow indicator clearly signals very slow water movement by flashing, distinguishing it from no flow or normal flow.
Its strategic placement ensures easy visibility for both homeowners and utility professionals during routine inspections. The Neptune T-10 is known for its proven accuracy and dependability at low flow rates, making this indicator a reliable tool for detecting minimal water usage. Proper positioning of sensors like this is critical to ensure accurate readings and avoid false alerts.
Detecting Continuous Water Flow
How can you accurately detect continuous low water flow using the Neptune T-10’s low flow indicator? First, verify all water fixtures are completely shut off.
Then, use a flashlight to illuminate the meter’s register face, activating the digital display or clearly lighting the low flow indicator. This is a small dial or sweep hand that moves with minimal flow. Ensuring the meter is properly installed is crucial for accurate readings and long-term reliability, as improper setup can lead to false flow detection.
If the indicator rotates or the digital flow rate remains above zero, you have confirmed continuous water flow, signaling a leak or drip. The meter’s design utilizes nutating disc technology which provides high sensitivity to detect water movement at these minimal flow levels.
The Neptune T-10’s nutating disc and floating chamber design guarantee precise measurement at flow rates below 1/32 gallon without electronic cut-off, allowing real-time leak detection. This precision is maintained even under challenging water conditions, preventing sediment or debris from affecting the flow accuracy.
Differences Between Mechanical and Electronic Registers
What sets mechanical and electronic registers apart in Neptune T-10 water meters lies in their design, operation, and data capabilities.
Mechanical registers use a nutating disc and visible dials to show water volume without power, while electronic registers employ battery-powered solid-state encoders with digital LCDs and wireless data transmission.
For maintenance or repairs, know how to turn off water supply properly when there is no valve under the sink. You’ll notice differences in accuracy, data features, and maintenance needs.
Key distinctions include:
Mechanical registers operate passively, require no battery, and show consumption via roller wheels and dials.
Electronic registers provide high-resolution, interval data, detect ultra-low and reverse flows, and send readings remotely. Additionally, the ProCoder T10 utilizes non-contact LED absolute encoding technology to enhance measurement precision.
Mechanical units demand less upkeep; electronic models need battery checks and system maintenance. Understanding these differences helps you choose and read your Neptune T-10 meter effectively.
How to Read Remote Registers: ProCoder and ProRead Models
Although remote reading methods vary, mastering the ProCoder and ProRead registers is essential for efficient data collection in Neptune T-10 water meters.
To read the ProCoder, start with the mechanical wheel bank displaying cumulative gallons. Use the first five digits for billing, representing 100-gallon units.
Then, interpret the sweep hand, which shows fractional gallons using major ticks (0-9) and a meter-specific multiplier.
For example, a sweep reading of 2.0 with a 0.01 multiplier equals 0.02 gallons.
The ProRead register provides error-free electronic readings without batteries, encoding the odometer position for accuracy.
It supports up to 10-digit IDs and auto-detects 2- or 3-wire protocols, simplifying installation.
Both registers require a Neptune Field Programmer for setup and support networking with Neptune and third-party endpoints following E-CODER specifications.
For maintenance or troubleshooting, it’s important to handle components carefully and follow safe disassembly procedures to avoid damage and ensure accurate readings.
Tips for Accurate Meter Reading in Various Installations
When reading Neptune T-10 meters in different installations, you must adjust your approach based on the meter type and setup.
Digital meters offer direct readings with decimals and leak indicators. Analog meters require careful dial interpretation and multiplier application.
Additionally, consider whether the meter is direct read or connected to remote systems, as this affects access and reading methods. Understanding the power requirements of the meter system can help optimize its operation and integration.
To guarantee accurate readings:
- Visually confirm measurement units (gallons or cubic feet) on the meter face before recording.
- For analog meters, read dials left to right, noting the red sweep hand for leak detection.
- When using remote registers, verify data transmission integrity and cross-check with physical readings when possible.
- Before starting, take 2 photos of the meter spaced 24+ hours apart to ensure accurate tracking of water usage over time.
Verifying Meter Accuracy and Calibration Information
Ensuring accurate meter readings requires regular verification of the Neptune T-10’s calibration and performance. Start by comparing the meter’s pulse output against a known volume using a calibrated flow bench or test tank.
Adjust the calibration vane if pulse counts deviate beyond ±1.5% accuracy standards. Inspect the magnetic-driven register for mechanical integrity and clean any debris to prevent interference. Use a magnetometer to verify pulse consistency and sensitivity, tuning thresholds as needed.
Confirm low flow accuracy by separately testing the T-10 chamber and turbine registers with minimum recommended volumes. Check that the meter zero setting and register alignment are correct during installation.
Additionally, be cautious during disassembly to avoid damaging the internal components such as gears and bearings. Maintain calibration documentation and certificates for traceability.
Recalibrate or replace components if accuracy drifts or mechanical wear occurs, ensuring compliance with AWWA standards. Regular maintenance and timely replacement of faulty parts are essential to prevent pressure gauge failure that could compromise meter accuracy.
Frequently Asked Questions
How Often Should the Neptune T-10 Water Meter Be Serviced?
You should service your Neptune T-10 water meter based on its condition and operational needs rather than a fixed schedule.
Inspect it periodically for accuracy, sediment buildup, and physical damage. If you notice flow irregularities or wear, perform maintenance immediately.
High flow rates, harsh environments, or older meters may require more frequent checks.
Use warranty and operational data to guide service timing, focusing on component replacement and seal integrity to maintain accuracy and reliability.
Can the Neptune T-10 Water Meter Detect Water Quality Issues?
You can’t rely on the Neptune T-10 meter to detect water quality issues, measure contaminants, or analyze chemical properties.
It measures water volume accurately, monitors flow rates, and detects leaks through low flow detection.
It records flow direction and volume but doesn’t assess pH, dissolved solids, or chlorine levels.
For water quality concerns, you need specialized testing equipment designed specifically for chemical and biological analysis, not a flow meter like the T-10.
What Is the Typical Lifespan of a Neptune T-10 Water Meter?
You can expect the typical lifespan of a Neptune T-10 water meter to be about 20 years.
This durability stems from its lead-free, high-copper alloy maincase and corrosion-resistant construction.
Its design meets rigorous standards like AWWA C700, ensuring reliable performance over time.
To maintain accuracy and functionality throughout its lifespan, perform regular maintenance and consider upgrading components as needed, following Neptune’s warranty and service guidelines.
How Does Temperature Affect the Neptune T-10 Meter’s Accuracy?
Temperature impacts the Neptune T-10 meter’s accuracy by affecting water viscosity and density, which influence the nutating disc’s movement.
You’ll see accurate readings within ±1.5% when water temperature stays below 80°F (27°C).
Exceeding this limit risks reduced precision and calibration drift, especially at low flows.
To maintain reliable measurements, verify the meter operates within its specified temperature range.
Avoid exposure to high-temperature water that can degrade material stability and measurement integrity.
Are There Any Special Tools Required for Neptune T-10 Meter Installation?
You don’t need any special tools beyond standard hand tools like flathead screwdrivers, pliers, a hammer, and a 7/16-inch wrench.
You’ll want a tool for removing snap rings and a ½-inch wrench to finish tightening maincase bolts.
A flashlight helps in low-light areas.
For installation, guarantee you have the required gasket and calibration assemblies.
Standard plumbing tools cover most tasks; just confirm compatibility with snap ring removal.
Transform Meter Data into Actionable Knowledge
Now that you’ve mastered reading the Neptune T-10 water meter, you hold the key to revealing precise water usage data. Remember, each dial and indicator tells a part of the story, like chapters in a book, so read them carefully.
Whether you’re checking the odometer, sweep hand, or low flow indicator, your attention to detail guarantees accurate readings. Keep these steps sharp, and you’ll always have reliable, actionable information at your fingertips.
